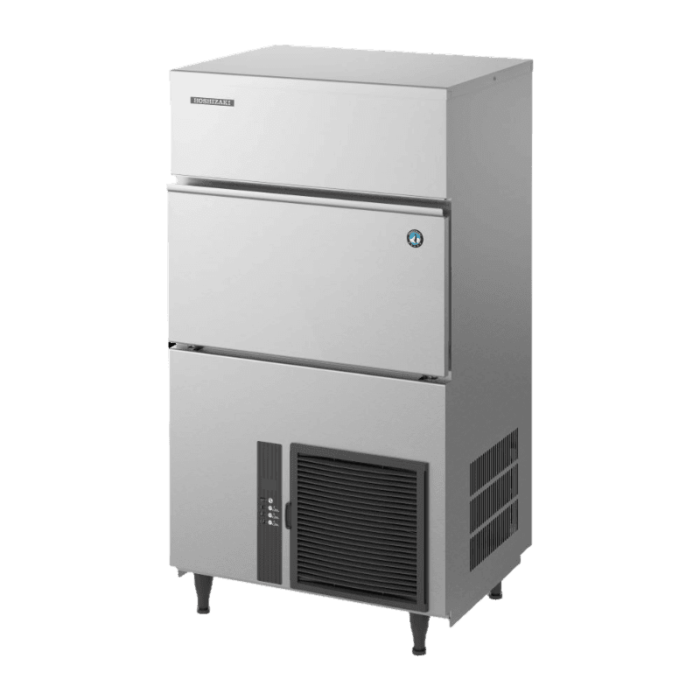

Hoshizaki IM-130CNE-28 SC Cube 104kg
All ice machines must have a filter installed, optional filter kit will be quoted on.
IM-130CNE-28 SC
- New intelligent control circuit dedicated to saving power and water consumption.
- Micro computer controller controls ice making process to work at peak performance in any conditions.
- Inbuilt safety features – freeze cycle back up timer, defrost back up, low voltage and high amp protector.
- New 7 segment operational display panel for ease of use.
- Unique closed cell water circuit for ultimate contamination protection.
- Durable stainless steel exterior.
- Easily accessible and cleanable air filters reduce costly callouts.
- Exceptionally hard crystal clear cubes that melt slowly.
- Auto rinse and flush cycle.
- 3 year parts and labour warranty on entire unit, 5 year (parts only) on compressor and air cooled condenser coil.
| Production Capacity per 24hours |
Approx. 100kg @10°C Air temp; 10°C Water
Approx. 104kg @21°C Air temp; 15°CWater
Approx. 88kg @32°C Air temp; 21°C Water |
| Max Storage Capacity |
Approx. 50kg (Bin Control Setting Approx.28kg) |
| Freeze Cycle Time |
Approx. 22 Min |
| Ice Production Per cycle |
Approx. 1.8kg/80pcs |
| Width |
704mm |
| Depth |
506mm |
| Height |
1270mm
(Includes 70mm-110mm Legs) |
| Weight Net |
76kg |
| Packed Weight |
85kg |
| Cooling |
Air |
| AC Supply Voltage |
1 PHASE 220-240V 50Hz/ 10 AMP Plug |
| Amperage |
Running: 4.5A Rated: 4.5A Starting: 19A |
| Refrigerant Charge |
R404A / 380g |
| Operating Conditions |
Ambient Temp.: 1-40°C
Water Supply Temp.: 5-35°C
Water Supply Pressure: 0.07-0.8MPa (0.7-8bar)
Voltage Range: Rated Voltage ±6% |
| Additional Parts: |
87000105 High capacity Water Filter System
87000149 Water Filter System & Guage
81000116 Stainless Steel Hose
95001013 Adjustable Leg |
$5,830.00 exc gst & delivery
